鏜銑工具系統
名稱：鏜銑工具系統
注：未注明規格亦可訂做

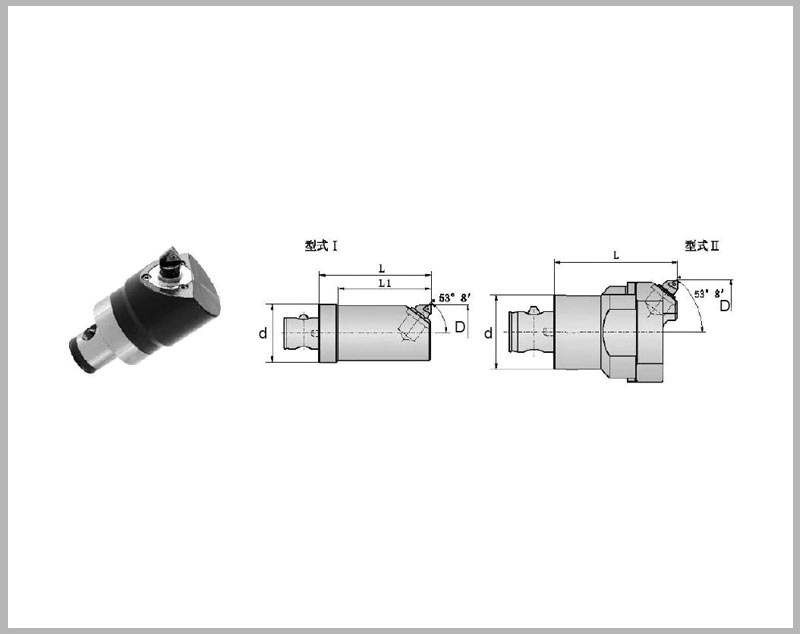

| 型號規格 | 鏜孔尺寸 | 尺寸 | 刀頭型號 | 型式 | ||
| D | d | L1 | L | |||
| 21CD25-MQW0260-50 | 26-30 | 25 | 45 | 55 | L148C-31-0602 | Ⅰ |
| 21CD25-MQW0290-50 | 29-33 | 25 | - | 55 | L148C-31-0602 | Ⅰ |
| 21CD32-MQW0320-60 | 32-36 | 32 | 55 | 65 | L148C-31-0602 | Ⅰ |
| 21CD32-MQW0350-60 | 35-40.6 | 32 | - | 65 | L148C-32-0902 | Ⅰ |
| 21CD40-MQW0396-60 | 39.6-45.2 | 40 | 50 | 65 | L148C-32-0902 | Ⅰ |
| 21CD40-MQW0442-60 | 44.2-49.8 | 40 | - | 65 | L148C-32-0902 | Ⅰ |
| 21CD40-MQW0448-60 | 48.8-58.4 | 40 | - | 65 | L148C-33-1102 | Ⅰ |
| 21CD50-MQW0574-70 | 57.4-67 | 50 | - | 75 | L148C-33-1102 | Ⅰ |
| 21CD63-MQW0660-70 | 66-75.6 | 63 | - | 75 | L148C-33-1102 | Ⅰ |
| 21CD63-MQW0750-70 | 75-84.6 | 63 | - | 75 | L148C-33-1102 | Ⅰ |
| 21CD80-MQW0840-70 | 84-93.6 | 80 | - | 95 | L148C-33-1102 | Ⅰ |
| 21CD63-MQW0900-85 | 90-150 | 63 | - | 90 | L148C-32-0902 | Ⅱ |
| 21CD80-MQW1240-95 | 120-180 | 80 | - | 100 | L148C-32-0902 | Ⅱ |
| 21CD80-MQW1750-95 | 150-210 | 80 | - | 100 | L148C-32-0902 | Ⅱ |
注：未注明規格亦可訂做
